Product Overview

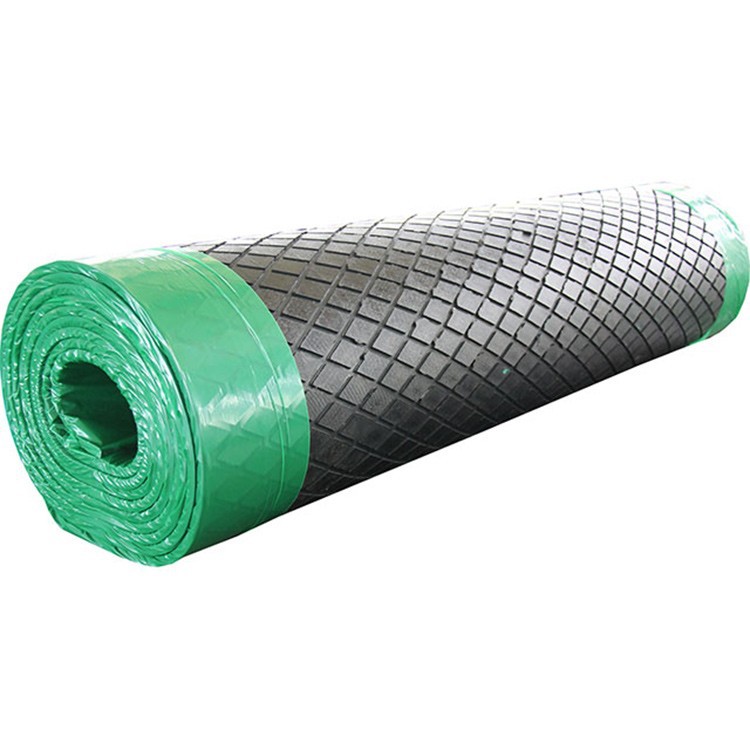

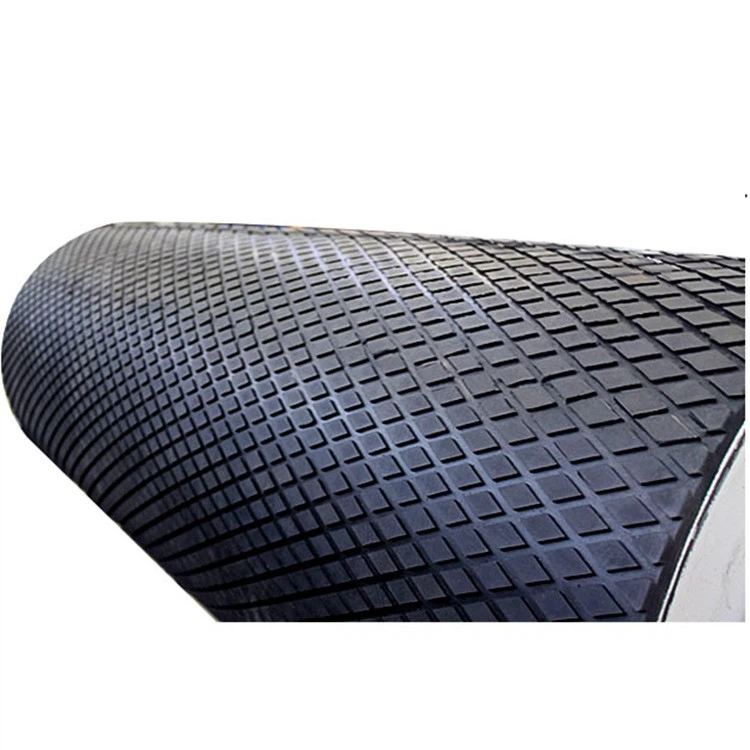

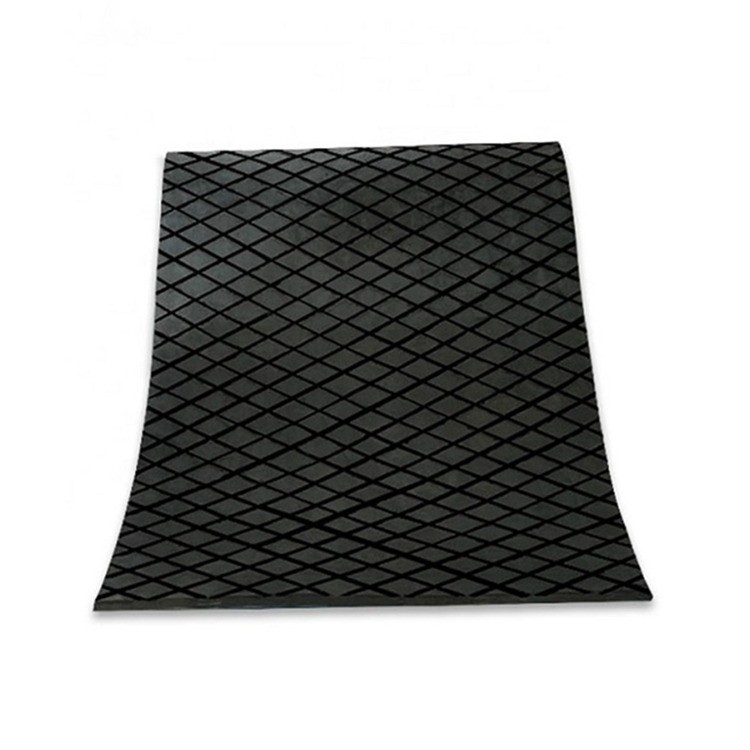

Diamond pulley lagging sheet is a specialized rubber lining material designed to enhance the grip and longevity of conveyor pulley systems. Featuring a raised diamond groove surface pattern, this type of lagging provides superior traction and improved water dispersion, making it especially effective in damp or high-slippage environments. Diamond rubber lagging is engineered to maximize friction between the conveyor belt and pulley, helping to reduce belt slippage and increase system reliability. The unique diamond design ensures that contaminants such as water, mud, and dust are channeled away, reducing maintenance needs and wear-related downtime.
Key Features
- Unique diamond groove pattern improves traction and grip.
- Excellent water dispersion reduces slippage in wet conditions.
- Minimizes material buildup and contamination.
- Improves belt tracking and conveyor system stability.
- Reduces wear on pulleys and conveyor belts.
- Durable and abrasion-resistant rubber compound.
- Suitable for heavy-duty and high-tension belt applications.
- Easy installation and long service life.
- Supports improved overall conveyor performance.
- With or without CN bonding layer according to request
- Normal grade and fire resistant grade available.
- Diamond type 78*45mm and 35*18mm.
Technical Specifications
|
Thickness |
Width |
Length |
|
8mm |
1000/1200/1450/2000mm |
10m |
|
10mm |
1000/1200/1450/2000mm |
10m |
|
12mm |
1000/1200/1450/2000mm |
10m |
|
15mm |
1000/1200/1450/2000mm |
10m |
|
20mm |
1000/1200/1450/2000mm |
10m |
|
25mm |
1000/1200/1450/2000mm |
10m |
|
30mm |
1000/1200/1450/2000mm |
10m |
|
Grade |
Color |
Polymer |
Density |
Tensile strength |
Hardness |
|
Fire resistant Grade |
black |
NR/BR |
1.35 |
15MPA |
Shore A |
|
Normal Grade |
black |
NR/BR |
1.32 |
12MPA |
Shore A |
Application Areas
Diamond rubber lagging sheets are widely used in various industrial conveyor systems where high friction and debris management are essential. Some key application areas include:
Mining Operations
Heavy-duty conveyor pulleys in mining benefit from the enhanced grip and wear resistance.
Cement Plants
Effective in resisting abrasion from powdery materials and moisture-prone environments.
Steel and Iron Processing
Ensures high stability in environments with dust, grease, and heavy materials.
Bulk Material Terminals
Handles large volumes of bulk cargo with reduced risk of belt misalignment.
Power Plants
Ideal for coal and biomass handling conveyors operating under high stress.
Fertilizer and Chemical Plants
Offers chemical resistance and non-slip characteristics in demanding applications.
Conclusion
Diamond pulley lagging sheet provides a superior solution for conveyor systems requiring advanced grip and water management capabilities. By incorporating diamond groove pulley lagging into your equipment, you enhance operational efficiency, extend equipment life, and minimize maintenance disruptions. With proven performance in high-load and high-contamination environments, this type of lagging is the preferred choice for many industries seeking reliable and cost-effective conveyor solutions. Whether you operate in mining, manufacturing, or logistics, diamond rubber lagging ensures your pulleys run smoothly and safely.
