Product Description

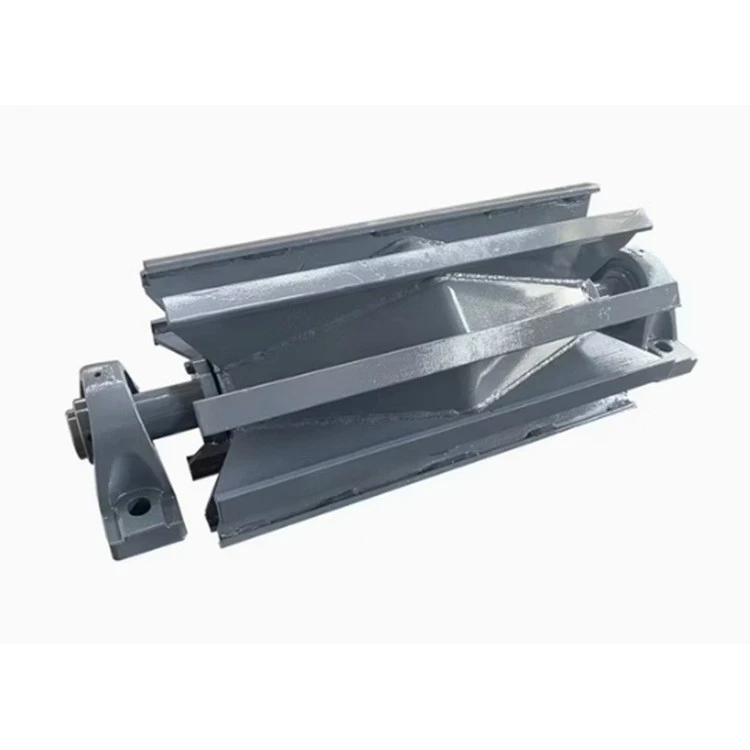

A wing pulley is a specialized type of conveyor pulley designed to improve performance in challenging conditions. Unlike traditional drum styles, wing pulleys feature a series of evenly spaced "wings" or fins radiating from the center hub. These fins create gaps that allow loose material, debris, and moisture to fall away as the pulley rotates.

Wing Pulleys provide automatic self-cleaning action, discharging foreign material to the side of the conveyor as the pulley rotates. The strong watertight double cone design features individual gussets welded continuously to each wing and hub for longer life. Individual wing construction reduces belt misalignment and belt wear because it cuts down material build-up between belt and pulley. Each wing is also welded to a thick wall tube which extends from hub to hub, supporting the wings and minimizing metal fatigue.

Wing pulley Types

Heavy Duty Wing Pulleys

Designed to withstand heavy loads, high speeds, and harsh environments.

6" – 60" diameter
Face widths exceeding 100"
Common sizes stocked with HE hubs
Also available with XT, QD or Taper Lock Hubs

Mine Duty Wing Pulleys

Specifically designed for use in mining applications, where they must withstand abrasive materials and continuous use.

8" – 60" diameter
Face widths exceeding 100"
Common sizes stocked with HE hubs
Also available with XT, QD or Taper Lock Hubs

Mine Duty Extra Wing Pulleys

Similar to Mine Duty Wing Pulleys, but with added features for increased strength and durability.

10" – 60" diameter
Face widths exceeding 100"
Common sizes stocked with HE hubs
AR400 contact bars upon request

Features

Improved System Efficiency
Self-cleaning Action
Extended belt life
Durability in tough environments
unique construction makes them an excellent choice for application with high material buildup risk.
Like other types of conveyor pulleys, wing pulleys may be equipped with lagging material on the surface to improve traction between the pulley and the belt.

Application

Mining and Aggregates: Handling bulk materials like coal, sand, and gravel.
Agriculture: Moving grain, seeds, and other agricultural products.
Recycling: Conveying materials in waste processing facilities.
Bulk Material Handling: In any industry where material buildup could impact performance.

Wing Pulley FAQS

Q1. What materials are conveyor pulleys made from?

A: Conveyor pulleys are typically made from materials like mild steel, stainless steel, or aluminum, depending on the application. Mild steel is common for durability, while stainless steel is used for corrosion resistance in harsh or hygienic environments. Aluminum is lighter and suited for specific industries like food processing.

Q2. How do I maintain or replace a pulley?

A: To maintain a pulley, regularly inspect for wear, clean debris, and ensure proper alignment. Lubricate bearings if required. To replace, disconnect the belt, loosen the fasteners, and remove the pulley. Install the new pulley, secure fasteners, and reattach the belt, ensuring proper tension and alignment.

Q3. What are the maintenance requirements for wing pulley?

A: Regular inspections are your best defense against wear issues like cracks or misalignment.
Always check your bearings! Are they properly lubricated? Bearing problems can cause issues all the way down your line. Ensure everything is rotating smoothly.
While wing pulleys are self-cleaning, excessive debris around the system can still cause issues. Ensure the area is free and clear of unnecessary material buildup that may affect operation.

Pulley Packing

pulley packing
