Product Description
Fire Resistant Impact Bars – Reliable Belt Support in High-Heat Zones
In industries where fire hazards or high temperatures are constant risks, standard conveyor impact solutions may fall short. Our Fire Resistant Impact Bar is specially engineered for these critical environments. Designed to absorb impact while withstanding elevated temperatures and minimizing combustion risk, this component is vital for belt protection in volatile material handling operations.
Featuring a flame-retardant rubber core and a heat-resistant UHMWPE impact bar surface, these bars deliver both performance and peace of mind. They are built to handle the force of falling material while providing a smooth glide zone for the conveyor belt. Ideal for use in impact cradle or slider cradle setups, these bars provide dependable support at loading points - without compromising safety.
Why Fire Resistant Impact Bars?
In certain industries - like coal processing, chemical handling, and recycling - the danger of heat and sparks triggering fire or belt damage is high. Our fire resistant impact bar is your front-line defense. It offers:
- A top surface that resists wear without melting or warping under thermal stress.
- A core material that dampens impact without igniting or producing harmful fumes.
- Seamless integration into slide bar assemblies and existing slider cradle or impact cradle configurations.
Core Product Features
Flame-Retardant Design
Each impact bar is built with fire-retardant rubber, specially formulated to meet industry standards for flame resistance. In the event of elevated temperatures or sparks, the bar resists ignition and slows combustion.
UHMWPE Top With Heat Resistance
The top layer consists of UHMWPE impact bar material, modified for heat and flame performance. It maintains low friction, allowing the belt to glide smoothly while resisting deformation from heat exposure.
SEO keyword: uhmwpe impact bar
Low-Friction Belt Contact
The UHMWPE surface has a very low coefficient of friction - ideal for high-load, fast-moving belts. This reduces wear on the belt and minimizes belt drag, even in abrasive or high-temperature applications.

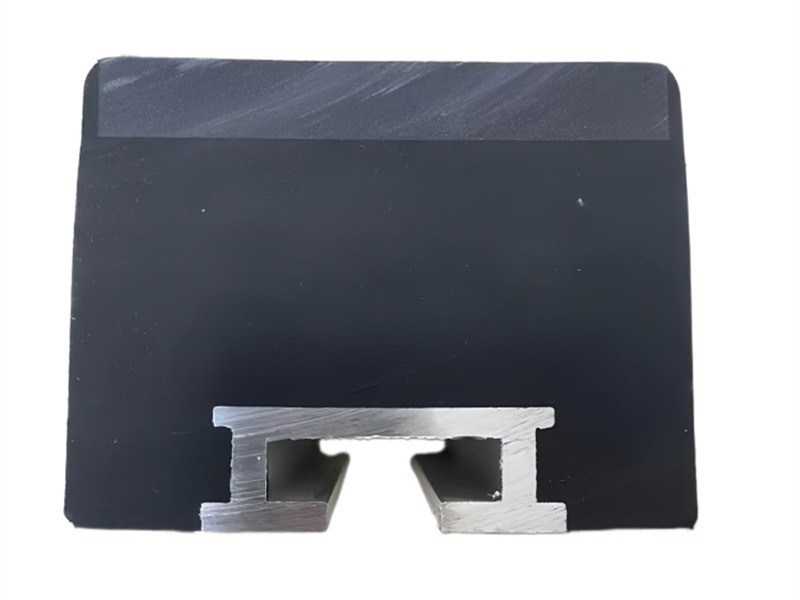

Rigid T-Slot Aluminum Base
The bar includes a high-strength aluminum base with a T-slot profile, ensuring solid mounting and compatibility with multiple conveyor designs - including impact cradle and slider cradle setups.
SEO keywords: slider cradle, impact cradle
Adaptable For Slide Bar Assemblies
These bars can also be used as part of slide bar configurations to maintain even belt support in transfer points where fire resistance is critical.
SEO keyword: slide bar
Customization Options
We offer multiple lengths, widths, and surface textures. Additional features like colored wear indicators or bolt-on support plates are available for OEM or retrofit applications.
Technical Specifications
|
Attribute |
Specification |
|
Top Surface |
Heat-resistant UHMWPE |
|
Core Material |
Fire-retardant rubber |
|
Base |
Anodized aluminum (T-slot design) |
|
Widths Available |
100mm |
|
Heights Available |
50mm, 55mm, 75mm, 100mm |
|
Standard Lengths |
750, 1000, 1220, 1400, 1500, 1600, 2000mm |
|
Flame Resistance Rating |
UL94 V-0 / DIN 4102 Class B2 (optional) |
|
Operating Temperature |
-30°C to +120°C |
|
Friction Coefficient |
< 0.2 |
|
Mounting Compatibility |
Bolt-on, T-slot, slide bar brackets |
|
Weather Resistance |
UV, moisture, and chemical resistant |
Applications
These fire-resistant bars are built for environments where safety is just as important as structural support. Typical application areas include:
🧯 Coal-Fired Power Plants
High temperatures and coal dust make these plants vulnerable to ignition. Our bars reduce risk while ensuring smooth belt support.
🏗️ Cement Manufacturing
In clinker zones or near furnaces, standard impact bars can warp or ignite. Fire resistant bars remain stable under radiant heat.
🛢️ Chemical Processing
Many chemicals require careful material handling with anti-static, flame-retardant belt systems. These bars match that need perfectly.
🔄 Waste Management and Recycling
In facilities handling flammable materials or metal scrap, sparks and friction are common. These bars mitigate risk while supporting heavy drops.
⛏️ Mining Operations with Methane Risk
In deep mines or tunnels where explosive gases might be present, fire-retardant equipment is mandatory. These bars help meet safety codes.
Integration Options
Whether you're retrofitting or setting up a new line, these fire-resistant impact bars are fully compatible with:
- Slider cradle units that provide full-length belt support.
- Impact cradle setups designed to absorb concentrated drop energy.
- Slide bar applications used in wide-belt systems or heavy-duty transfer stations.
Key Advantages
- Flame-retardant rubber for maximum safety.
- Heat-resistant UHMWPE maintains low-friction belt contact.
- Installs easily into slide bar, slider cradle, or impact cradle systems.
- Suitable for custom conveyor layouts.
- Reduces maintenance costs and unplanned downtime.
- Performs reliably in harsh, dusty, and corrosive environments.
Let's Talk About Your Safety Needs
If your operation involves elevated temperatures or potential fire hazards, don't take chances with standard impact bars. Our fire resistant impact bar is designed to meet both your safety standards and performance requirements.
Need a specific flame rating or custom size?
Looking for full cradle systems or mounting kits?
Want to upgrade your slider cradle or slide bar setup?
We can help.
Contact us today for a consultation, CAD drawings, or a custom quote.
Or call us directly at 8615110396140.
