Product Introduction

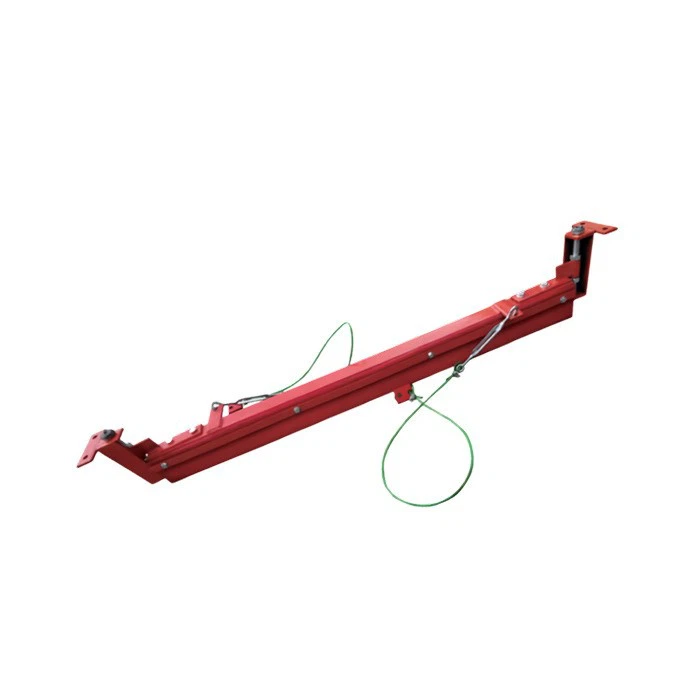

Floating Diagonal Plough – Reversible Belt Cleaning for Conveyor Return Side

The Floating Diagonal Plough, also known as a Reversible Diagonal Plow Belt Cleaner, is an essential cleaning device used to prevent carryback materials from collecting on the return side of a conveyor system. Unlike V ploughs that push debris to both sides, the diagonal plough sweeps material to a single side, making it ideal for confined spaces and reversible belt applications.

Model: YQ-I

This return conveyor plough operates slightly above the belt surface, using gravity and a suspended mount to maintain consistent cleaning pressure without direct belt contact. Its diagonal blade design ensures effective removal of rocks, fines, and loose material that can accumulate and damage return rollers or tail pulleys. Constructed with a polyurethane scraper, this unit offers excellent wear resistance and is compatible with both forward and reverse belt operations.

YQ-I Drawing and Parameters

YQ-I Drawing

Model	B (mm)	A (mm)	E (mm)
YQ-I	650	760	950
	800	937	1150
	1000	1190	1350
	1200	1440	1600
	1400	1640	1810
	1600	1880	2060

Product Features

Diagonal blade design clears material to a single side for improved space efficiency.
Floating mount allows natural adjustment to belt contour and debris levels.
Constructed with PU belt scraper for high wear resistance and flexibility.
Ideal for reversible belt systems due to symmetrical blade and mount design.
Minimizes buildup under return belts and protects tail pulleys and rollers.
No direct contact with the belt surface – reducing wear and noise.
Quick installation and minimal maintenance requirements.
Optional shock-absorbing mounts for heavy-duty applications.
Available for various belt widths and operating conditions.
Functions independently or as part of a full conveyor belt cleaning system.

Technical Specifications

Parameter	Specification
Scraper Type	Floating Diagonal (non-contact)
Scraper Material	Polyurethane (PU)
Mounting Position	Return side of belt, before tail pulley
Frame Material	Powder-coated carbon steel or stainless steel
Belt Width Compatibility	500mm–2200mm
Belt Direction Compatibility	Single or reversible
Operating Temperature	-30°C to +80°C
Mounting Mechanism	Suspended arm or fixed diagonal bracket
Maintenance	Tool-less adjustment and blade replacement
Blade Design	Angled/diagonal for one-sided discharge
Function	Prevents carryback buildup and enhances belt alignment

Application Areas

Quarries – Keeps crushed stone and fines from contaminating tail pulleys.

Mining – Clears return belts of mud, clay, and large particles.

Cement Plants – Removes cement dust and clinker from the return path.

Coal Handling – Deflects sticky coal residue off the return belt side.

Steel Industry – Works well with slag and scrap return conveyors.

Fertilizer Plants – Minimizes corrosive buildup from chemical handling.

Recycling – Prevents wet paper, plastics, and small metals from accumulating.

Agricultural – Protects belts transporting grain, feed, and mulch materials.

Packing

Belt plough packing

SEO Keywords

• Return conveyor plough

• Diagonal Plough Reversible belt cleaner

• Reversible Diagonal Plow Belt Cleaner

• Reversible diagonal plow belt cleaner

• PU belt scraper

• Conveyor belt scraper

• Belt scraper

• Conveyor belt cleaning system

Conclusion

The Floating Diagonal Plough is a versatile, non-contact scraper that effectively clears debris from the underside of conveyor belts. It's a must-have for return belt protection in space-limited or reversible systems. With its diagonal design, durable PU scraper blade, and flexible mounting, this belt scraper enhances the reliability and lifespan of your conveyor equipment. Whether you operate in mining, recycling, or industrial material handling.
