Product Introduction

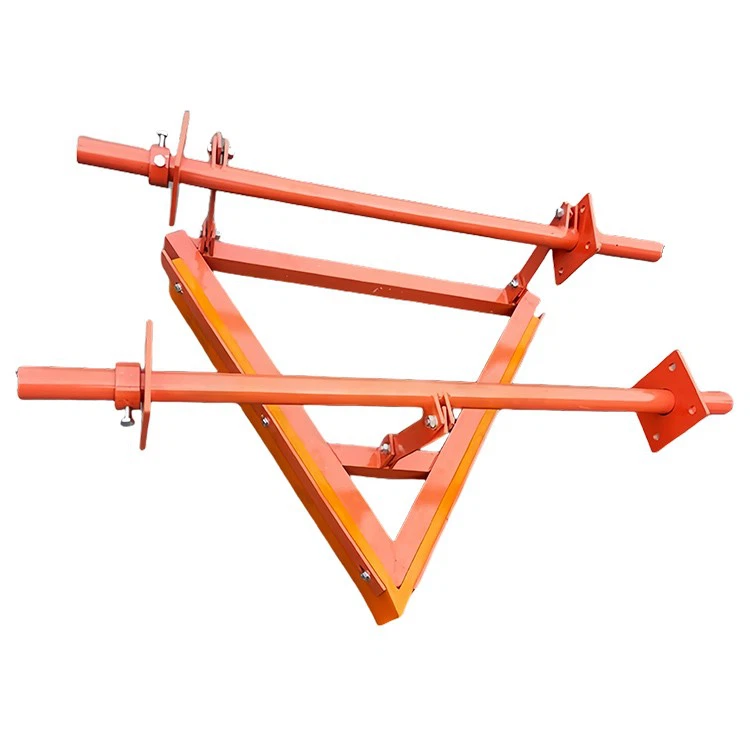

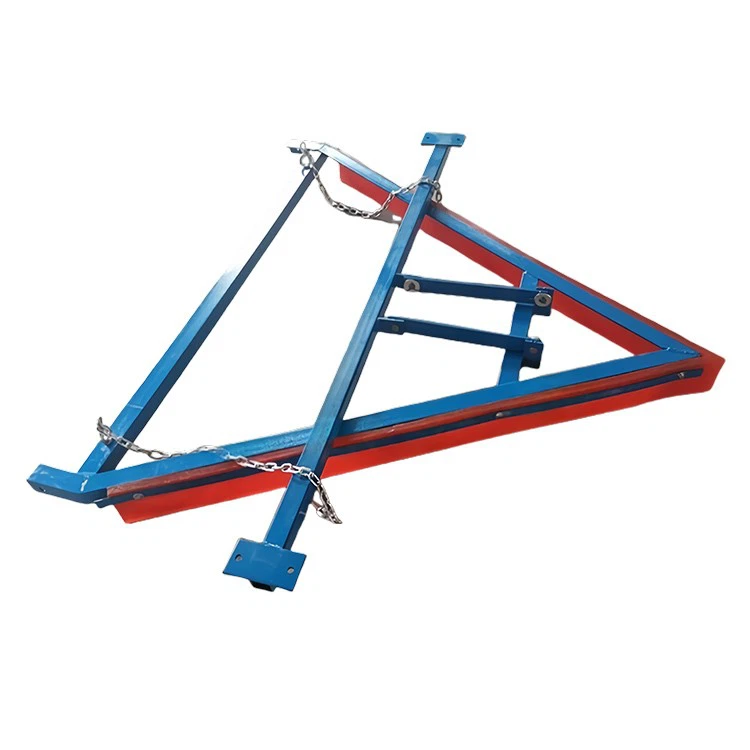

Conveyor Floating V Plough – Non-Contact Return Belt Cleaning Solution
The Conveyor Floating V Plough, also known as a Return Conveyor Plough or V Plow Belt Cleaner, is a highly effective device designed to clean the return (underside) side of the conveyor belt. Its floating design allows the V plough scraper to ride just above the belt surface, removing large lumps, rocks, or bulk materials that might otherwise damage tail pulleys and cause misalignment.
Floating V ploughs are typically installed in the center of the return belt, positioned just before the tail pulley. These non-contact scrapers are especially valuable in environments where carryback materials pose a threat to belt tracking and component longevity. Constructed from durable PU belt scraper materials and supported by a strong frame, the V plough efficiently deflects debris away from the belt surface without damaging the belt itself.
Product Categories
**1. Standard Floating V Plough**
This type is designed for standard-width belts and non-reversing applications. It uses a fixed frame and a V-shaped PU scraper that hovers above the belt.
Model: YQ-V
**2. Heavy-Duty Floating V Plough**
Engineered for wider belts and heavy-duty operations, this version includes reinforced arms and shock-absorbing mounts to withstand heavy impacts and large debris.
Model: YQ-HV
|
Model |
B |
A |
A1 |
L |
|
YQ-V |
650 |
950 |
770 |
627 |
|
800 |
1150 |
970 |
800 |
|
|
1000 |
1350 |
1170 |
973 |
|
|
1200 |
1600 |
1420 |
1190 |
|
|
1400 |
1810 |
1630 |
1372 |
|
|
1600 |
2060 |
1880 |
1588 |
|
|
1800 |
2260 |
2080 |
1761 |
|
|
2000 |
2490 |
2290 |
1943 |
|
|
2200 |
2800 |
2610 |
2270 |
Product Features
- Floating design protects the belt from damage while clearing large debris.
- PU belt scraper material offers flexibility, strength, and excellent wear resistance.
- Prevents rocks, spillage, and return side buildup from reaching tail pulleys.
- Improves belt tracking and extends the life of belt components.
- Segmented arms and modular frame for easy transport, installation, and maintenance.
- Low-maintenance design with no belt contact required.
- Works well in extreme temperature and dusty environments.
- Can be used in conjunction with other primary and secondary belt cleaners.
- Available in a wide range of sizes to suit various belt widths and configurations.
Technical Specifications
|
Parameter |
Specification |
|
Scraper Material |
Polyurethane (PU), abrasion-resistant |
|
Frame Material |
Galvanized or powder-coated carbon steel / Stainless steel (optional) |
|
Installation Position |
Return side of belt, before tail pulley |
|
Mounting Type |
Floating / non-contact / adjustable mounting arms |
|
Belt Width Compatibility |
500mm–2200mm |
|
Operating Temperature Range |
-40°C to +80°C |
|
Application Type |
Single-direction and reversing belts |
|
Cleaning Function |
Deflects carryback debris to sides of the conveyor belt |
|
Maintenance |
Low maintenance; quick blade inspection and replacement |
|
Installation |
Bolt-on bracket kits or welded frames with tensioning options |
Application Areas
Mining – Protects tail pulleys by deflecting ore, rocks, and wet materials from the belt return side.
Quarrying – Prevents spillage from causing tracking issues in stone and gravel operations.
Cement Plants – Keeps return belts free of cement dust and clinker buildup.
Power Plants – Clears carryback coal and ash before it reaches critical return rollers.
Steel Mills – Removes metal fragments and slag that could damage belt systems.
Fertilizer Plants – Handles sticky and corrosive materials without belt wear.
Recycling Facilities – Deflects bulky items and wet residue from return belt surfaces.
Agriculture – Clears feed, grain, or fertilizer from return belts in agricultural conveyors.
SEO Keywords
• Return conveyor plough
• V plow belt cleaner
• V plough scraper
• PU belt scraper
• Conveyor belt scraper
• Belt scraper
• Conveyor belt cleaning system
Conclusion
The Conveyor Floating V Plough is a simple yet highly effective cleaning solution for protecting the return side of conveyor belts. By eliminating large carryback and debris before it reaches tail pulleys, the V plough scraper reduces wear, improves tracking, and prevents costly shutdowns. Constructed from flexible polyurethane and designed for long-term use in demanding environments, this non-contact plough is an essential component of any modern conveyor belt cleaning system. Ideal for mining, bulk handling, recycling, and more, the floating V plough offers long-term performance with minimal maintenance requirements.
